AXIL Consulting Engineers is an Authorized Sales Partner for SIGMA and its verticals in INDIA, Working closely with SIGMA; we provide the best solutions for your Design Challenges in analysing Pressure vessels & Boiler Pressure parts through our PROBAD analysis Software.

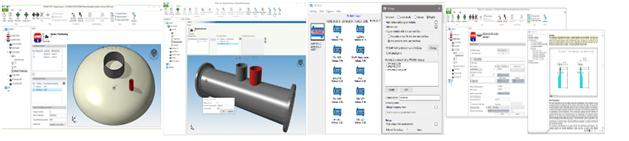

PROBAD is the standard solution for code-based strength calculations of pressure parts. PROBAD is successfully used for years worldwide by leading companies of the boilers and vessels industry, in plant design and in piping construction.

The latest status of standards in PROBAD and a continuously technical development is guaranteed by PROBAD maintenance agreements.

PROBAD offers solutions for the effective use of calculation modules in accordance with the standards:

• AD 2000-sheets, TRD-sheets
• EN 12952, EN 13480, EN 13445, EN 1591
• ASME Sect. I., ASME Sect. VIII. Div.1, ASME B31.1, ASME B31.3
• WRC 107, WRC 297

The main factors some highlights of the PROBAD calculation modules:

• PROBAD is of modular design; this enables licensing individual modules in relation to the company needs (see available PROBAD solutions).
• PROBAD allows not only re-checking defined component dimensions, but also designing or optimizing components.
• The comprehensive component databases of PROBAD include additional norms and standards regarding dimensions, wall thickness´, tolerances etc.
• Material databases containing EN, DIN and ASME materials are supporting the calculation modules.
• The values can be edited or modified individually by the user.
• Standard-safety factors of the calculation rules are stored and can be modified in accordance with the projects requirements.
• For all PROBAD modules screen inputs and print outputs are currently available in German and English. The dialog system provides convenient help screens, either as text or graphic.
